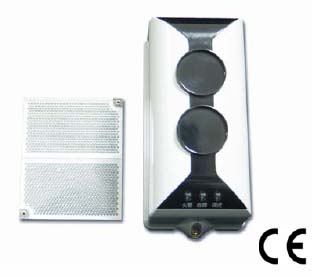

Đầu báo Beam địa chỉ GST I-9105R

Liên hệ

Thương hiệu: GST

Tình trạng: Còn hàng

Mã sản phẩm: I-9105R

Thương hiệu: GST

Xuất xứ: TRUNG QUỐC

Mô tả
Hướng dẫn
Đánh giá

Feature
Range 8 -100 Metres
2 selectable levels of sensitivity adjustment
Ideal for Atriums, Warehouses, Shopping Centres, Airport Terminals, etc.
Simple and cost effective to install of transmitter and reflective 'honey comb' mirror
Quick and easy to set up and align with visual Green LED indication that flashes faster or slower subject to signal strength. Replace the cover and the detector will self calibrate to the required level.
Technical Specifications
Operating voltage: 24VDC Loop, 24VDC Power Supply
Operating current (power supply):
Standby current 12mA
Alarm current 22mA
Detection Range: Length from 10 to 100 metres, width 7 metres in both sides
Wiring: Non-polarized two-core 24VDC
Non-polarized two-core detection loop
Operating environment:
Temperature -10 ~ +50°C
Relative humidity 92%
