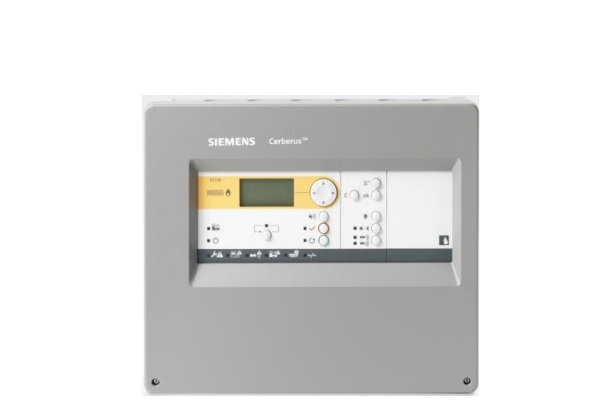

Trung tâm báo cháy thường 8 kênh FC123-ZA

Liên hệ

Thương hiệu: Siemens

Tình trạng: Còn hàng

Mã sản phẩm: FC123-ZA

Xuất xứ: TRUNG QUỐC

The FC123-ZA compacts fire control panels with an integrated operating unit for 8 zones.

- Processes signals from the 110-series/ DS11 and SynoLINE300/600 series.

- The control unit has been designed to be very simple to use while offering exceptional flexibility via a comprehensive feature list.

- All detector lines are monitored for ground faults.

- Adaptation of the customer text directly on the panel via menu navigation.

- Up to 1000 events can be stored according to various criteria.

- Automatic summer/winter time change.

Thông số kỹ thuật

Model	FC122-ZA-8 zones
Mains voltage	AC 97…127 V AC 196…253 V
Power consumption	70 W
Operating voltage	DC 21…28.6 V
Max. nominal output current without battery charging (I max b)	Max. 2.5 A
Battery capacity	2x 12V, up to 17 Ah
Battery monitoring	Yes
Mains monitoring	Yes
Connectable detector series	110-series/ DS11/ SynoLINE300/ 600
Number of lines	8
Number of detectors per line	Max. 32
Slots for relay cards	2
Emergency current	Up to 72 Ah
Operating temperature	-5…+40 °C
Storage temperature	-20…+60 °C
Humidity (no condensation permitted)	≤95 % rel.
Dimensions (W x H x D)	430 x 399 x 124 mm
Protection category (IEC 60529)	IP30
